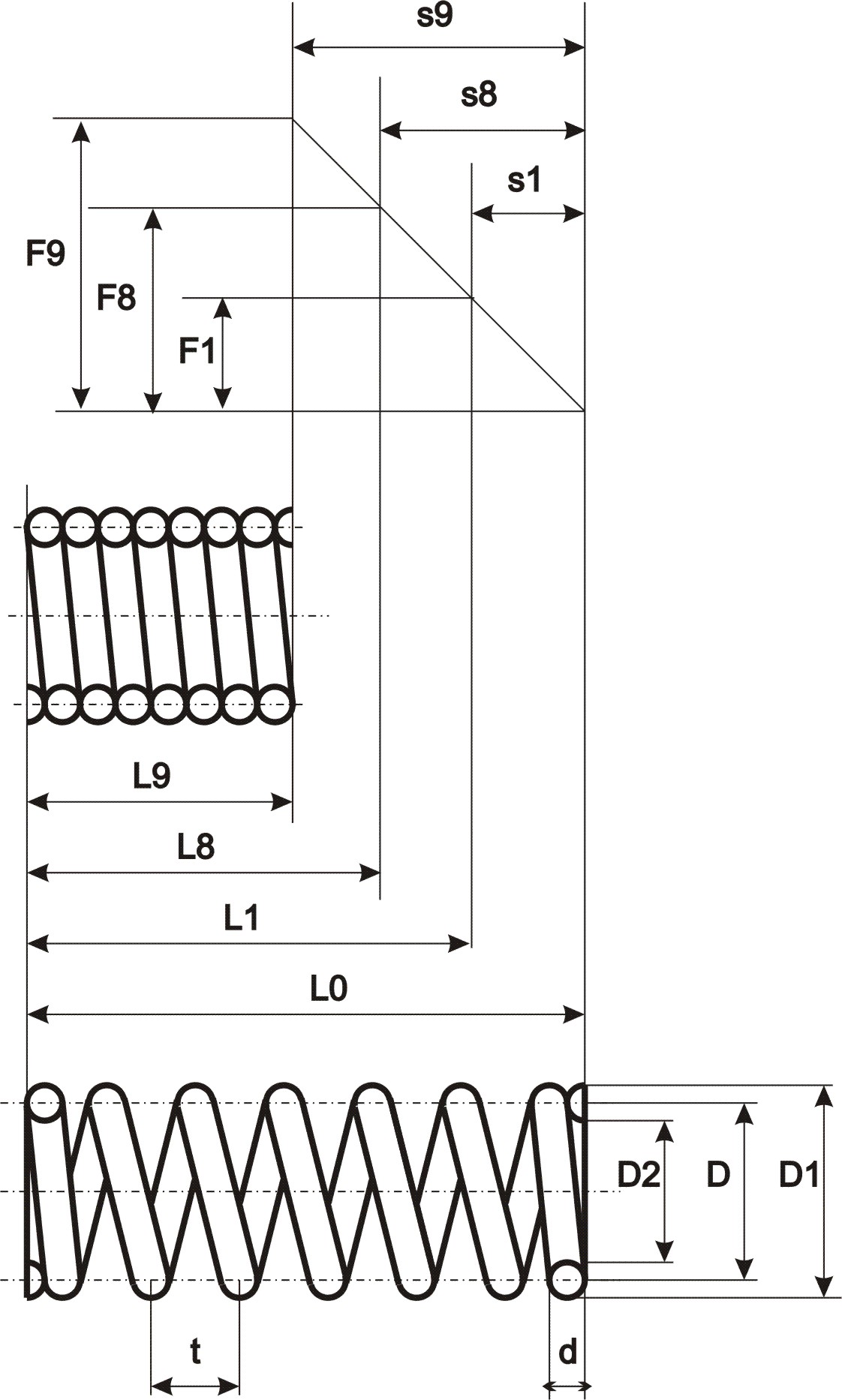

Pružina tlačná válcová 0,50x4,5x34x13 neobrobeno

Volna dlzka L0= 34.00+-[0.70-1.40] mm

Drot pruziny d= 0.500 mm 14.DIN 17224 X 12 Cr Ni 177 1.4310 DIN 2076

Pomer vinutia i= 8.000 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 4.500+-[0.15-0.30] mm D= 4.000 mm D2= 3.500+-[0.15-0.30] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=11.00 zavitov nz=2.00 zavitov z=13.00 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 30.00 mm F1= 3.11+-[0.38-0.76] N Tau1= 296.6 Mpa

L8= 25.00 mm F8= 6.99+-[0.53-1.07] N Tau8= 667.4 Mpa

L9= 21.86 mm F9= 9.43 N Tau9= 900.0 MPa

TauD= 900.0 MPa

Tuhost pruziny c= 0.777 N/mm

Stupanie pruziny t= 3.00 mm Ma platit! 1.40 <= t <= 2.40

Rozvinuta dlzka l= 163.4 mm
