Pružina tlačná válcová 0,40x6x17,7x13 neobrobeno

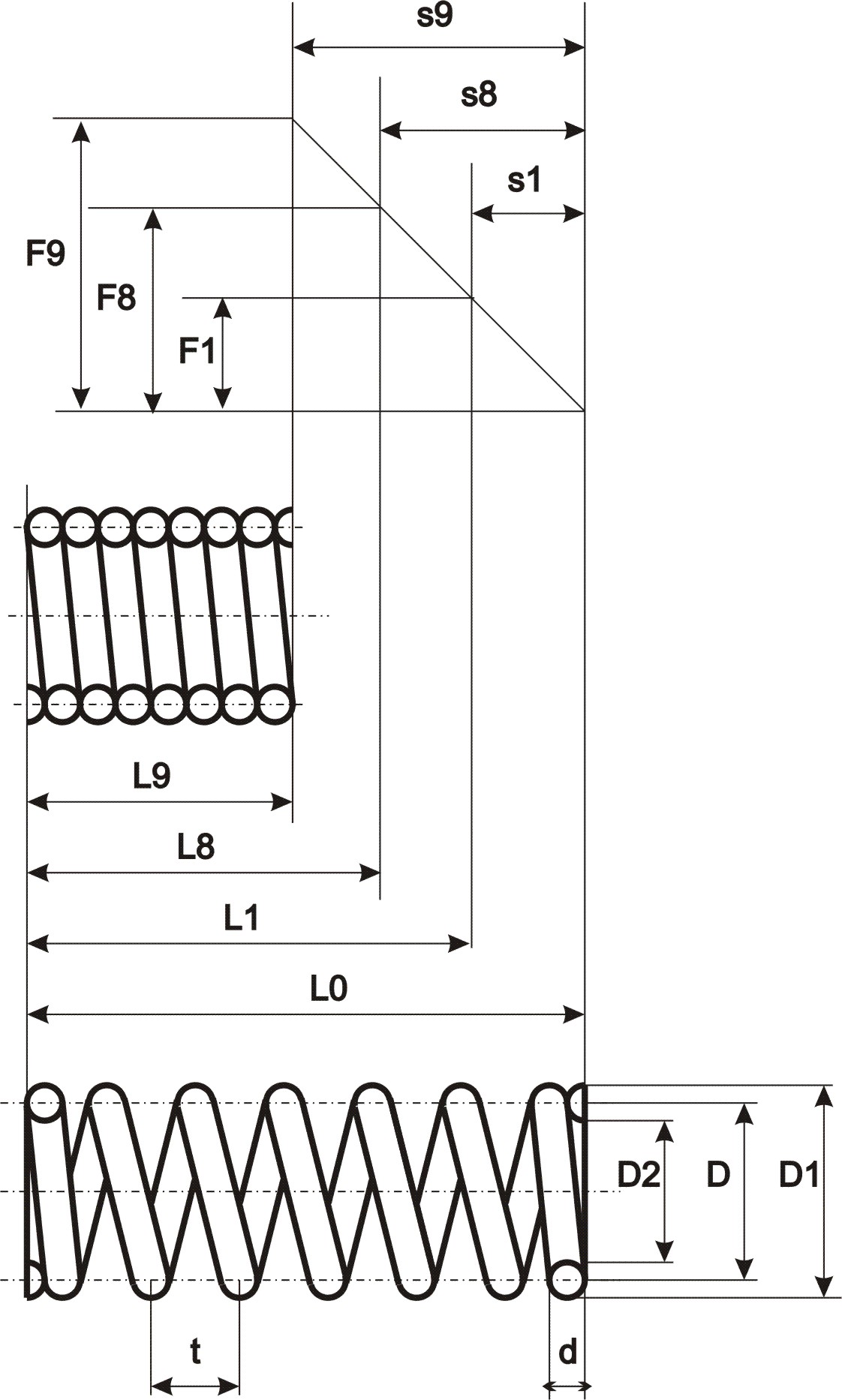

Volna dlzka L0= 17.70+-[0.70-1.40] mm

Drot pruziny d= 0.400 mm 14.DIN 17224 X 12 Cr Ni 177 1.4310 DIN 2076

Pomer vinutia i= 14.000 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 6.000+-[0.25-0.50] mm D= 5.600 mm D2= 5.200+-[0.25-0.50] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=11.00 zavitov nz=2.00 zavitov z=13.00 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 15.00 mm F1= 0.31+-[0.06-0.12] N Tau1= 76.2 Mpa

L8= 10.00 mm F8= 0.89+-[0.10-0.20] N Tau8= 217.3 Mpa

L9= 5.20 mm F9= 1.45 N Tau9= 352.8 MPa

TauD= 900.0 MPa

Tuhost pruziny c= 0.116 N/mm

Stupanie pruziny t= 1.54 mm Ma platit! 1.88 <= t <= 3.36

Rozvinuta dlzka l= 228.7 mm
