Pružina tlačná válcová 1,80x26,6x70x10,5neobrobeno

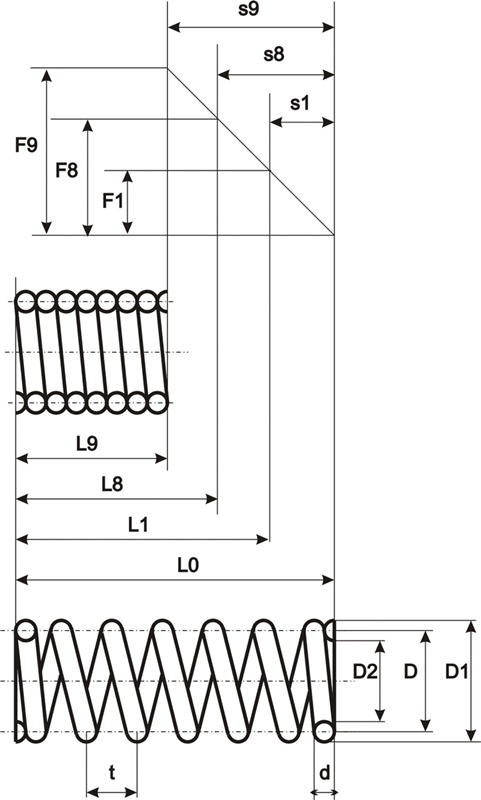

Volna dlzka L0= 70.00+-[1.60-3.20] mm

Drot pruziny d= 1.800 mm 14.DIN 17224 X 12 Cr Ni 177 1.4310 DIN 2076

Pomer vinutia i= 13.778 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 26.600+-[0.50-1.00] mm D= 24.800 mm D2= 23.000+-[0.50-1.00] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=8.50 zavitov nz=2.00 zavitov z=10.50 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 35.00 mm F1= 24.80+-[1.42-2.85] N Tau1= 293.7 Mpa

L8= 20.00 mm F8= 35.42+-[1.80-3.59] N Tau8= 419.6 Mpa

L9= 18.90 mm F9= 36.20 N Tau9= 428.8 MPa

TauD= 765.0 MPa

Tuhost pruziny c= 0.708 N/mm

Stupanie pruziny t= 7.81 mm Ma platit! 7.64 <= t <= 14.88

Rozvinuta dlzka l= 818.1 mm
