Pružina tlačná válcová 1,20x17x100x16 obrobeno

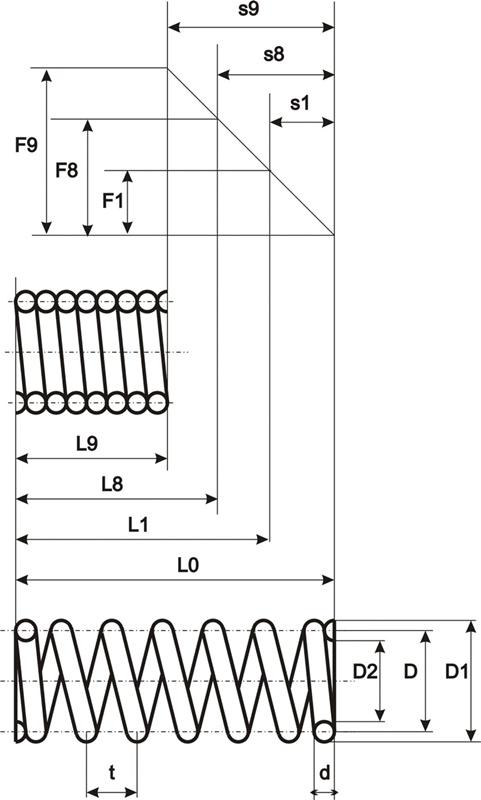

Volna dlzka L0= 48.00+-[1.10-2.20] mm

Drot pruziny d= 1.200 mm 2. Patentovany drot EN 10 270-1

Pomer vinutia i= 13.167 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 17.000+-[0.40-0.80] mm D= 15.800 mm D2= 14.600+-[0.40-0.80] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=5.50 zavitov nz=2.00 zavitov z=7.50 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 35.00 mm F1= 12.50+-[1.08-2.16] N Tau1= 319.8 Mpa

L8= 20.00 mm F8= 26.93+-[1.73-3.46] N Tau8= 688.9 Mpa

L9= 9.00 mm F9= 37.51 N Tau9= 959.5 MPa

TauD= 1089.0 MPa Tuhost pruziny c= 0.962 N/mm

Stupanie pruziny t= 8.29 mm Ma platit! 4.94 <= t <= 9.48

Rozvinuta dlzka l= 372.3 mm
