Pružina tlačná válcová 0,80x16x110x13 obrobeno

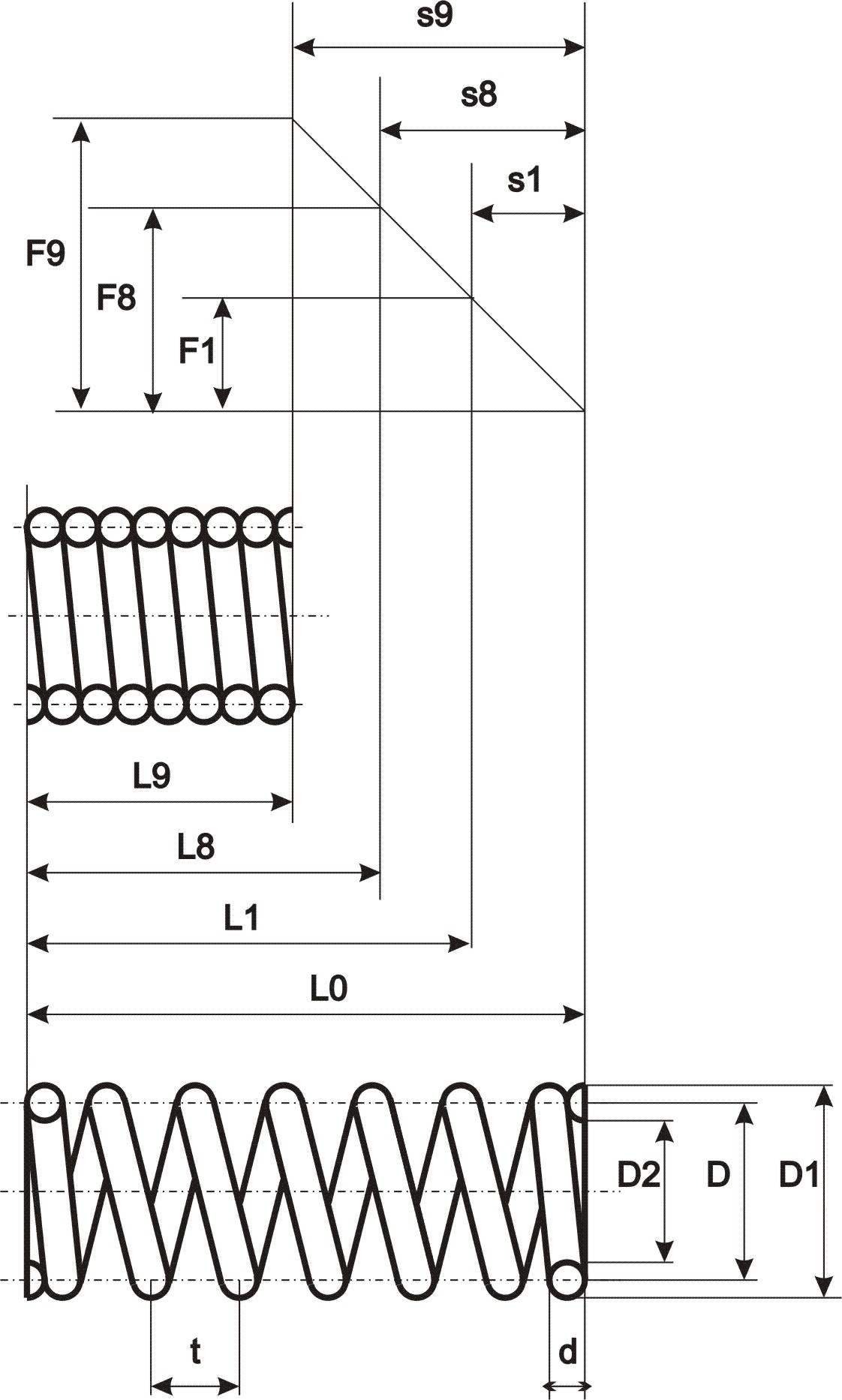

Volna dlzka L0= 110.00+-[2.40-4.80] mm

Drot pruziny d= 0.800 mm 14.DIN 17224 X 12 Cr Ni 177 1.4310 DIN 2076

Pomer vinutia i= 19.000 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 16.000+-[0.60-1.20] mm D= 15.200 mm D2= 14.400+-[0.60-1.20] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=11.00 zavitov nz=2.00 zavitov z=13.00 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 40.65 mm F1= 6.43+-[0.37-0.74] N Tau1= 518.8 Mpa

L8= 16.05 mm F8= 8.72+-[0.46-0.93] N Tau8= 702.9 Mpa

L9= 10.40 mm F9= 9.24 N Tau9= 745.2 MPa

TauD= 855.0 MPa

Tuhost pruziny c= 0.093 N/mm

Stupanie pruziny t= 9.85 mm Ma platit! 4.76 <= t <= 9.12

Rozvinuta dlzka l= 620.8 mm
