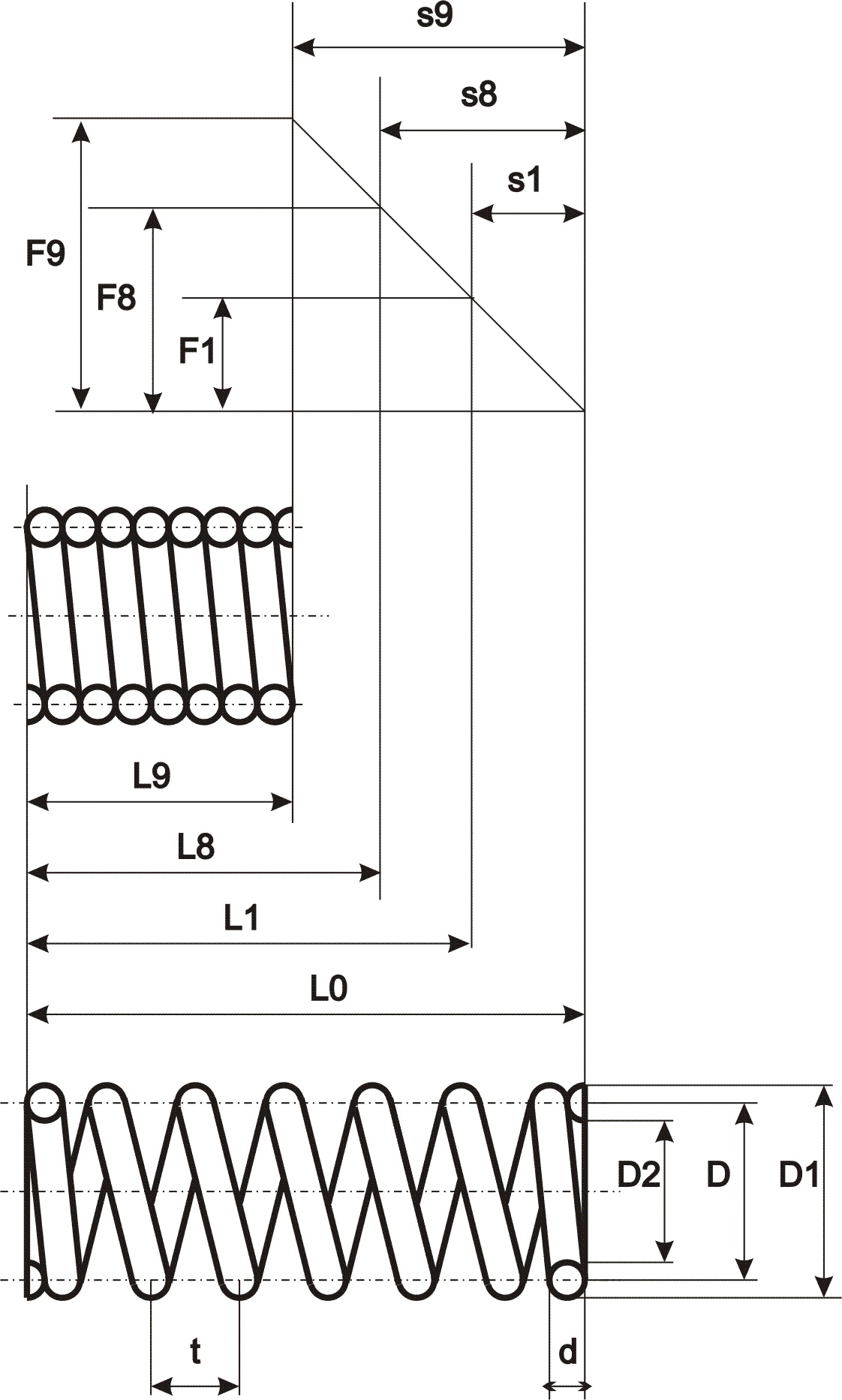

Pružina tlačná válcová 0,80x7,4x40x12 obrobeno

Volna dlzka L0= 40.00+-[0.70-1.40] mm

Drot pruziny d= 0.800 mm 14.DIN 17224 X 12 Cr Ni 177 1.4310 DIN 2076

Pomer vinutia i= 8.250 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 7.400+-[0.30-0.60] mm D= 6.600 mm D2= 5.800+-[0.30-0.60] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=10.00 zavitov nz=2.00 zavitov z=12.00 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 35.00 mm F1= 6.23+-[0.75-1.50] N Tau1= 238.5 Mpa

L8= 30.00 mm F8= 12.47+-[1.06-2.12] N Tau8= 476.9 Mpa

L9= 22.07 mm F9= 22.35 N Tau9= 855.0 MPa

TauD= 855.0 MPa

Tuhost pruziny c= 1.247 N/mm

Stupanie pruziny t= 3.84 mm Ma platit! 2.18 <= t <= 3.96

Rozvinuta dlzka l= 248.8 mm
