Pružina tlačná válcová 1,00x14x114x15 obrobeno

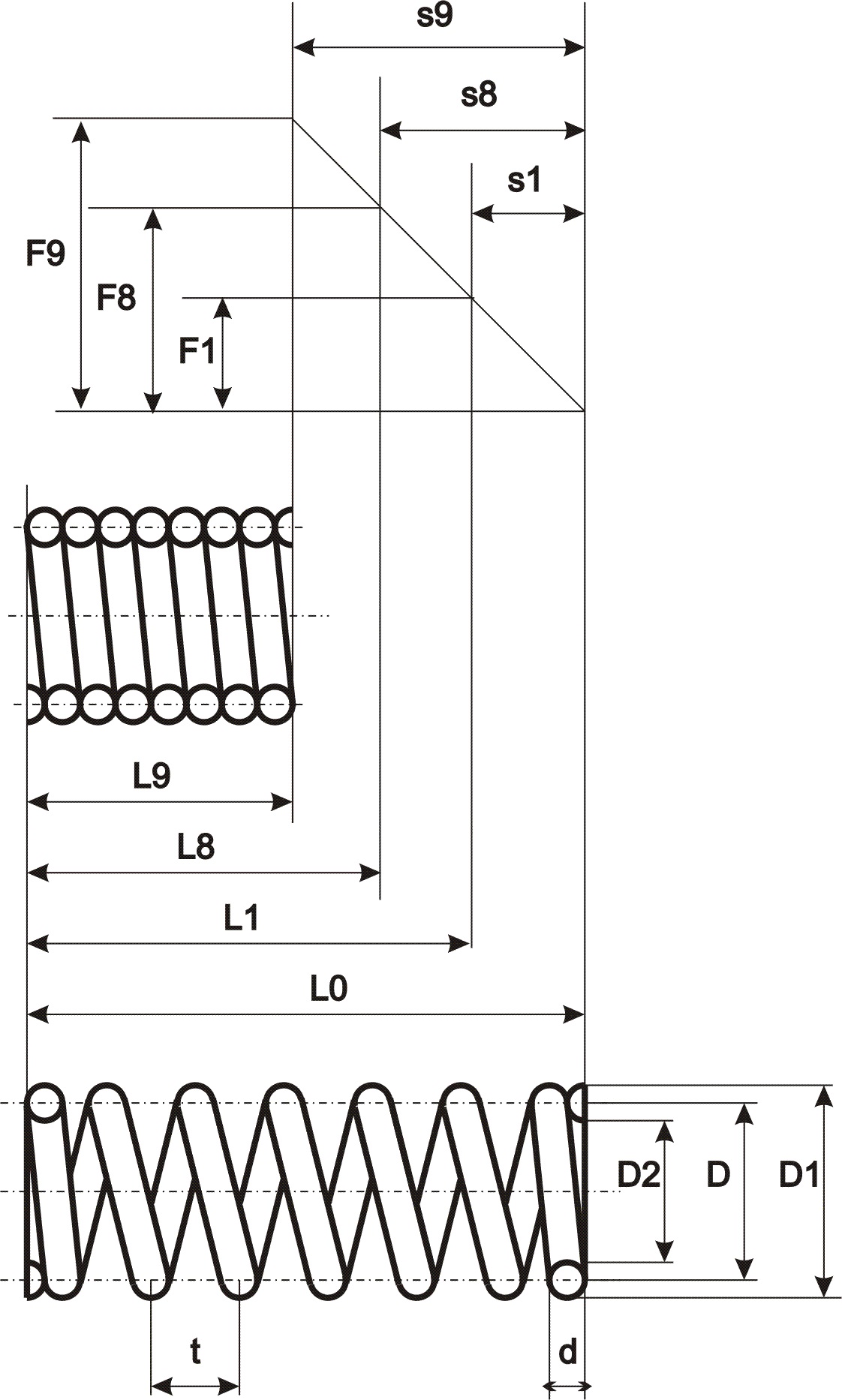

Volna dlzka L0= 114.00+-[2.40-4.80] mm

Drot pruziny d= 1.000 mm 14.DIN 17224 X 12 Cr Ni 177 1.4310 DIN 2076

Pomer vinutia i= 13.000 Ma platit! 4 <= i <= 16

>> Vonkajsi priemer << >> Stredny priemer << >> Vnutorny priemer <<

D1= 14.000+-[0.40-0.80] mm D= 13.000 mm D2= 12.000+-[0.40-0.80] mm

>> Cinne zavity << >> Zaverne zavity << >> Celkove zavity <<

n=13.00 zavitov nz=2.00 zavitov z=15.00 zavitov

>> Dlzka L << >> Sila F << >> Napatie Tau <<

L1= 90.00 mm F1= 7.35+-[0.65-1.30] N Tau1= 267.7 Mpa

L8= 60.00 mm F8= 16.54+-[0.97-1.94] N Tau8= 602.4 Mpa

L9= 41.39 mm F9= 22.24 N Tau9= 810.0 MPa

TauD= 810.0 MPa

Tuhost pruziny c= 0.306 N/mm

Stupanie pruziny t= 8.62 mm Ma platit! 4.10 <= t <= 7.80

Rozvinuta dlzka l= 612.6 mm
